• HLD Series Low Dew Point Heatless Regenerative Desiccant Air Dryers
1 1

Altec Air

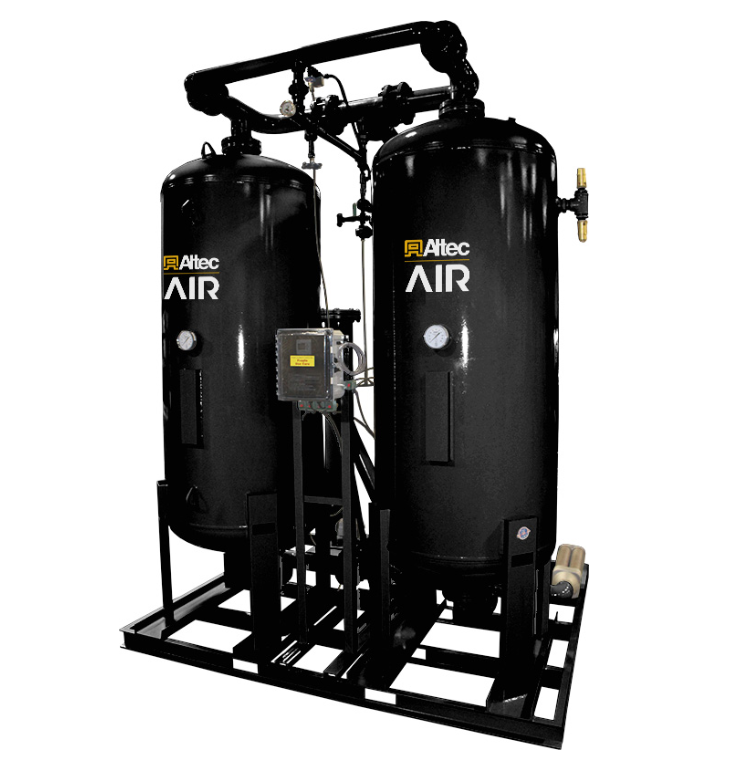

HLD Series Low Dew Point Heatless Regenerative Desiccant Air Dryers

HLD Series Low Dew Point Heatless Regenerative Desiccant Air Dryers

Capacity
EconoTronic Dew Point Demand Control Included

Altec AIR’s HLD Series Low Dew Point Heatless Desiccant Air Dryers are designed to provide -100°F / -73°C Pressure Dew Point (PDP) for a variety of industries and applications, including those in ultra-low ambient temperatures.

  • -100°F / -73°C Pressure Dew Point (PDP) Standard
  • Factory installed Filters w/ Differential Pressure Gauges and Pre-Filter Timer Drain
  • E-Z Switching Valves for Extreme Valve Life
  • Feature Rich ETL Listed Pro-Logic Controller w/ NEMA 4 Enclosure
  • Optimum Factory Pre-Set Purge Regardless Of Operating Pressure

FILES & LITERATURE:

  1. Specifications Sheet
  2. Large Capacity Desiccant Air Dryers Brochure
  3. Industrial Products Brochure

STANDARD FEATURES:

  • Power Requirements - 120 VAC, 1 Phase, 60 Hz
  • Maximum Pressure - 150 PSIG Standard
  • Maximum Operating Temperature - 120°F / 49°C
  • Selecable Cycles
  • 3-Way Inlet Valve Reduces Number of Valves
  • Hard Point Mounting for Installation Integrity
  • ASME Safety Relief Valves
  • Delta PSI Gauges Filters For Element Condition
  • Regulated Purge (HLD-0100 & Larger)
  • Independent Re-Pressurization Circuit

OPTIONAL FEATURES:

  • EcoTronic Dew Point Demand Control
  • Dual Filter & Bypass Packages
  • High Pressure (200 - 1000 PSIG) Models*
View full details
