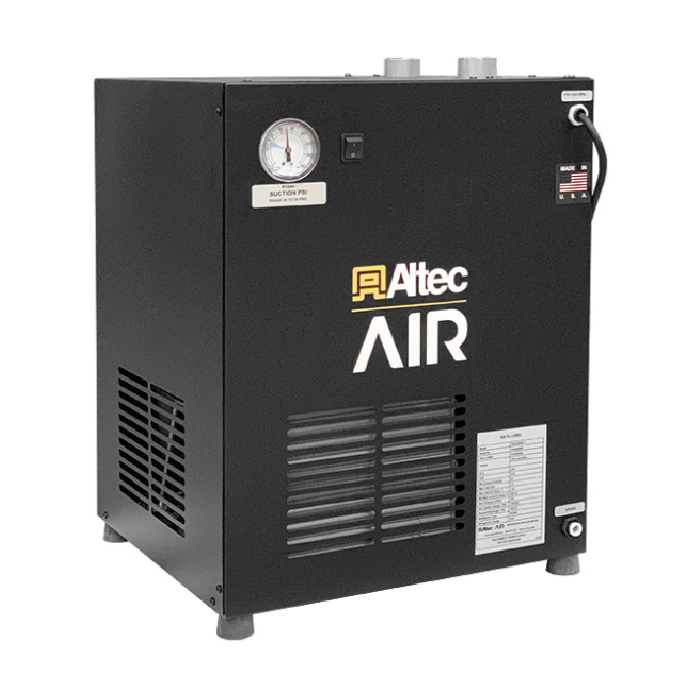

RHT Series High Inlet Temperature Refrigerated Air Dryers

RHT Series High Inlet Temperature Refrigerated Air Dryers

Capacity

Altec AIR’s RHT Series High Inlet Temperature Refrigerated Air Dryers are designed to be used with tank mounted pistontype air compressors that have no after-coolers.

  • Does not require Separate After Coolers, Separators, or Drains
  • Hight Inlet Temperature - Up to 200°F
  • Consistent & Reliable Dry Air - ISO Class 6
  • Compact All-Aluminum Heat Exchanger Modules with Low Pressure Drops
  • Programmable Automatic Electronic Drains
  • Easy-Access Cabinet Design for Ease of Maintenance & Serviceability
  • Top Mounted Inlet & Outlet Connections Allow for Easy Installation of Dryer, Filters, & Bypass Valves
  • ETL Listed Configurations (Pending)

FILES & LITERATURE:

  1. Specifications Sheet
  2. Refrigerated Air Dryers Brochure
  3. Industrial Products Brochure



STANDARD FEATURES:

  • Available Input Voltages*
    • 115 VAC, 1 Phase, 60Hz
    • 208-230 VAC, 1 Phase, 60Hz
    • 230 VAC, 3 Phase, 60Hz
    • 460 VAC, 3 Phase, 60Hz
    • 575 VAC, 3 Phase, 60Hz
  • Maximum Pressure - 232 PSIG
  • Maximum Inlet Temperature - 200°F / 93°C

OPTIONAL FEATURES:

  • Installed Filter Kits
  • Filter Bypass Kits
  • Floor Stands
  • Magnetic Condenser Filters
