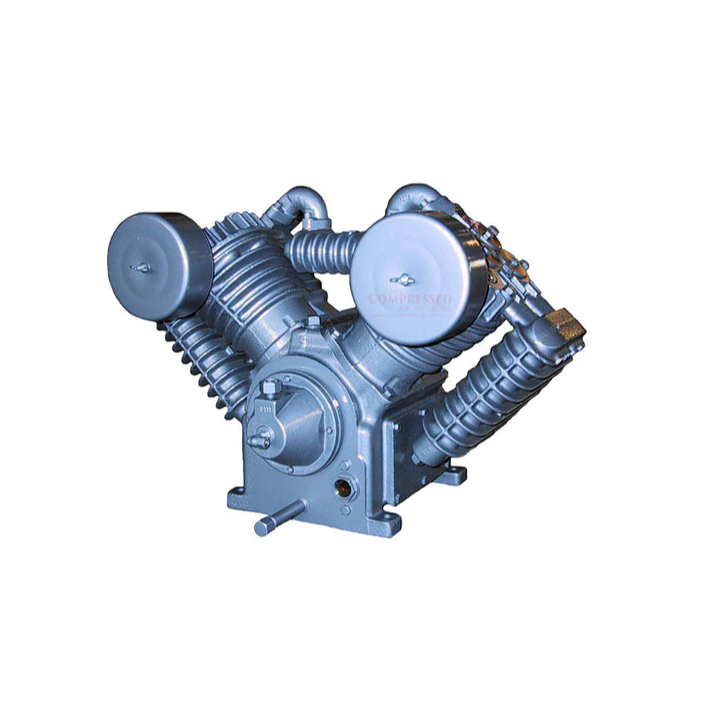

Saylor Beall Pumps #707

SAYLOR BEALL 707 FEATURES:

CYLINDER HEAD- Finned Cast Iron- Valves Serviceable from Top

CYLINDER- Finned Cast Iron- Precision Honed

INTERCOOLERS- Sturdy Finned Cast Iron (With Safety Valves)

CRANKSHAFT- Cast Meehanite- Ground and Polished

CONNECTING RODS- With Replaceable Precision Type Automotive Inserts- Crank End

Replaceable Needle Bearings- Wrist Pin End

PISTONS- L.P. Aluminum- H.P. Cast Iron

PISTON RINGS- Three Compression- One Oil

CENTRIFUGAL UNLOADER- No Load Start

SPECIFICATIONS - 707 BASIC AIR COMPRESSOR - TWO STAGE - 4 CYLINDER

Bore- LP- 4 1/8" (2)

          HP- 2 1/8" (2)

Stroke- 3 1/2"

CFM/Rev- .054

Oil Capacity-Pts- 3 1/2"

Air Filter- 2

      Type- DRY

Openings N.P.T.

Suction- 1" (2)

Discharge- 3/4"

Flywheel O.D- 16 3/4"

 V-Belts-No. and Section- 2-B

Basic Compressor

Weight-Dry, Lbs- 29B

Width- 27"

Length- 21"

Height- 18"

Max. Press. (PSI)- 200

OPTIONAL EQUIPTMENT:

    Oil Bath Air Cleaners

    Constant Speed-Discharge Unloader
