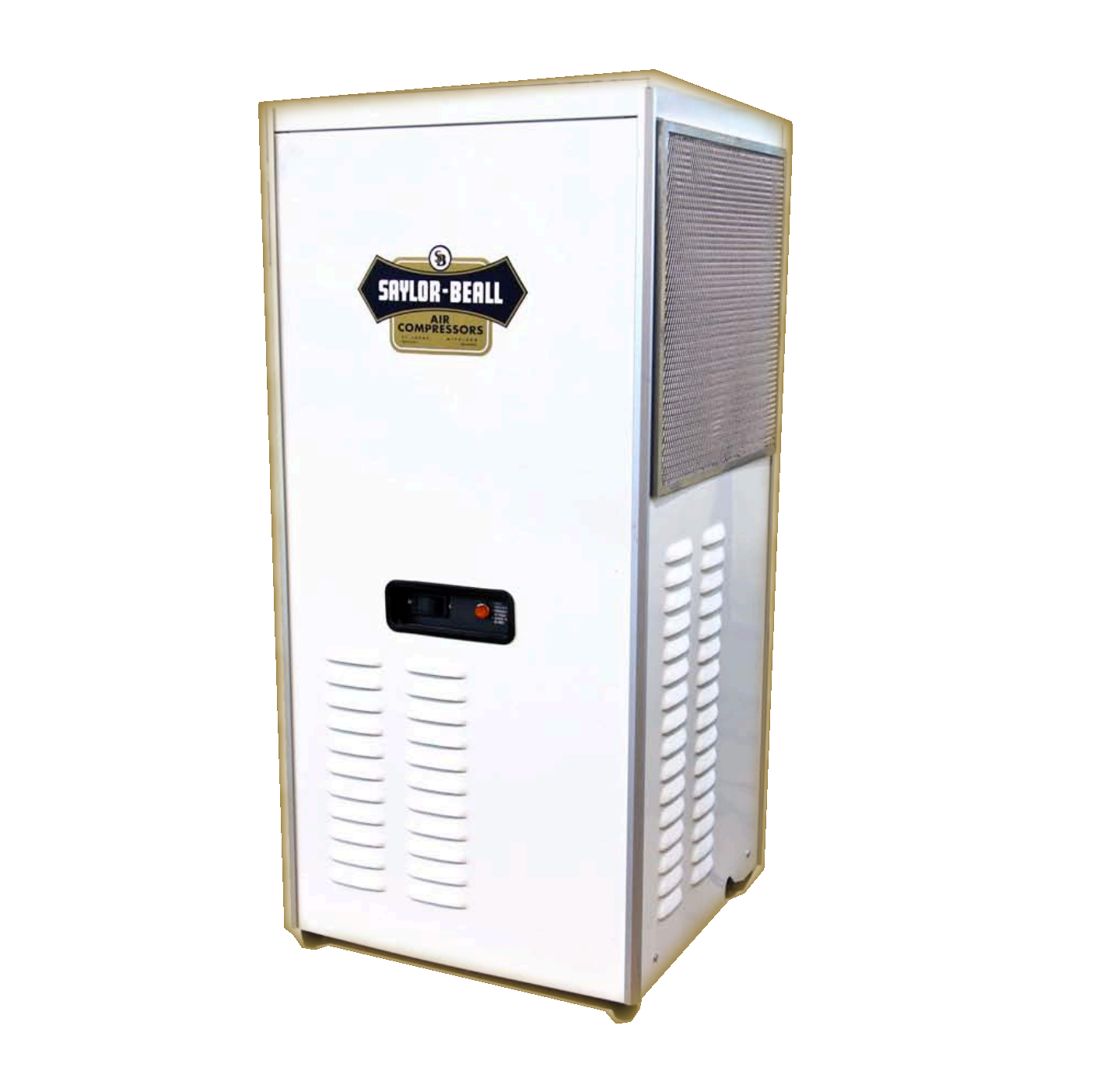

SAYLOR-BEALL- SBR/HT SERIES AIR DRYERS

COMPRESSED AIR TREATMENT SYSTEM

A complete air treatment system

• Functions as an aftercooler/separator, refrigerated dryer and filter in one package
• Eliminates need for separate aftercooler and separator... accepts high temperature air (to 1800 F) directly from your air compressor
• Includes a refrigerated dryer… removes moisture… eliminates troublesome water from downstream air lines and equipment
• An integral 3 micron filter removes solid contaminates and 60% of oil aerosols (for virtually oil free air add a high efficiency oil removal filter downstream)

Furnishes clean, dry air for commercial and industrial facilities with 5 to 30* horsepower compressors

• Protects pneumatic equipment from solid and liquid contaminants
• Allows compressed air equipment to work at peak efficiency
• Prolongs equipment life… reduces maintenance costs
• Eliminates the need to install and maintain point-of-use filters, separators or extractors

Easy model selection

• Pre-engineered systems… no need to select and purchase separate components
• Models matched to common compressor sizes

• Compact - saves valuable floor space
• No separate components to pipe together… simply connect inlet and outlet connections to the air system, plug in and it’s ready to operate

Easy to use

• Continuously dries and cleans without adjustments
• Eliminates the need to frequently replace desiccants, paper rolls, etc.

Economical

• Low power usage
• Low pressure drop

FEATURES:

• Compact, highly efficient heat exchangers… no internal mesh to foul… heat exchange efficiency increased by creating helix flow paths in counterflow arrangement
• Two stage separator/filter removes condensed oil and water over a wide range of flows
• Reliable condensate drain - air operated… automatically discharges water and oil from dryer without air loss… no timer to adjust
• Automatic refrigeration temperature control system maintains precise chilled air temperature – never needs to be adjusted for load, ambient or seasonal changes, no freeze ups
• Fan switch - allows operation in low (350F, 20C) ambients, saves energy at low loads Hermetic refrigeration system - requires no maintenance, no adjustments, operates as reliably as your home refrigerator
• Air reheated to save energy and prevent pipe sweating

Easy to Install

• Free standing cabinet with feet
• Power cord with molded plug
• Staggered inlet/outlet connections makes pipe connections easy

Easy to operate

• On/off switch - turns all components on
• Fault light - indicates overload or system malfunction

Easy to maintain

• Simple filter sleeve replacement
• Includes cleanable refrigeration condenser filter and cleanable inlet strainer
